Bone Curette

## Product Overview

Bone Curette is a bone curette listed in the Spoons and Curettes range of the Aesculap Surgical Instrument Catalog, pages 1458–1487. The source catalog is bilingual and prints the designation as Bone Curette in English and Scharfer Löffel in German, so either term can be used when matching this item against an existing inventory or tender list. This entry represents the complete catalogued family of 47 configurations rather than a single item, so the specifications below describe the full printed range. Each configuration carries its own catalog number and is quoted separately. The family is printed in the catalog under the range FK702R-FK705R, FK712R-FK715R, FK630NR-FK639NR, FK640NR-FK649NR, FK743NR-FK747NR, FK753NR-FK757NR, FK696NR-FK698NR, FK651R-FK652R, and FK653R-FK654R. It is classified in the catalog under Surgical Instruments > Spoons and Curettes > Bone Curette.

## Design Characteristics

The catalog prints these descriptors bilingually: angled (gewinkelt), sharp/sharp (spitz/spitz), double ended (doppelendig), straight (gerade), sharp (scharf), rigid (starr), curved (gebogen), and toothed (gezahnt).

## Configuration Options

The family is catalogued in 47 configurations. The source catalog does not print an attribute that distinguishes every configuration in this family, so each is identified by its printed catalog number. The printed specification for each is reproduced below exactly as it appears in the source, with no value inferred.

– **DO650R** — angled; sharp; length 160 mm; diameter 2.3 mm; second working-end diameter 2.8 mm
– **FK630NR** — straight; sharp; rigid; SQ.line; length 180 mm; diameter 2.8 mm
– **FK631NR** — straight; sharp; rigid; SQ.line; length 180 mm; diameter 3.6 mm
– **FK632NR** — straight; sharp; rigid; SQ.line; size #00; length 180 mm; diameter 4.4 mm
– **FK633NR** — straight; sharp; rigid; SQ.line; size #0; length 180 mm; diameter 5.2 mm
– **FK634NR** — straight; sharp; rigid; SQ.line; size #1; length 180 mm; diameter 6.8 mm
– **FK635NR** — straight; sharp; rigid; SQ.line; size #2; length 180 mm; diameter 8.5 mm
– **FK636NR** — straight; sharp; rigid; SQ.line; size #3; length 180 mm; diameter 10 mm
– **FK637NR** — straight; sharp; rigid; SQ.line; size #4; length 180 mm; diameter 11.5 mm
– **FK638NR** — straight; sharp; rigid; SQ.line; size #5; length 180 mm; diameter 13 mm
– **FK639NR** — straight; sharp; rigid; SQ.line; size #6; length 180 mm; diameter 14.5 mm
– **FK640NR** — straight; sharp; rigid; SQ.line; length 240 mm; diameter 2.8 mm
– **FK641NR** — straight; sharp; rigid; SQ.line; length 240 mm; diameter 3.6 mm
– **FK642NR** — straight; sharp; rigid; SQ.line; size #00; length 240 mm; diameter 4.4 mm
– **FK643NR** — straight; sharp; rigid; SQ.line; size #0; length 240 mm; diameter 5.2 mm
– **FK644NR** — straight; sharp; rigid; SQ.line; size #1; length 240 mm; diameter 6.8 mm
– **FK645NR** — straight; sharp; rigid; SQ.line; size #2; length 240 mm; diameter 8.5 mm
– **FK646NR** — straight; sharp; rigid; SQ.line; size #3; length 240 mm; diameter 10 mm
– **FK647NR** — straight; sharp; rigid; SQ.line; size #4; length 240 mm; diameter 11.5 mm

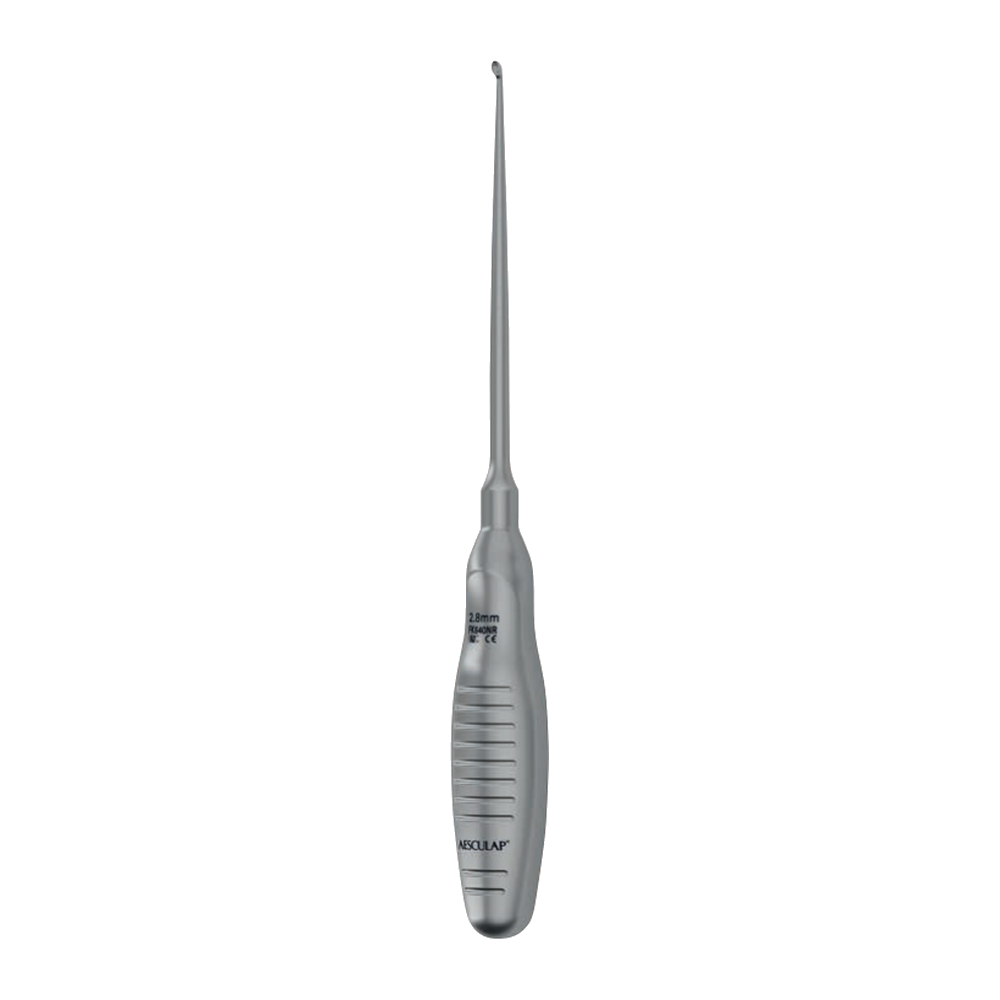

– **FK648NR** — straight; sharp; rigid; SQ.line; size #5; length 240 mm; diameter 13 mm
– **FK649NR** — straight; sharp; rigid; SQ.line; size #6; length 240 mm; diameter 14.5 mm
– **FK650R** — curved; sharp; rigid; length 195 mm; diameter 8.2 mm
– **FK651R** — angled; sharp; rigid; length 190 mm; diameter 4.2 mm
– **FK652R** — angled; sharp; rigid; length 195 mm; diameter 3 mm
– **FK653R** — curved; sharp; rigid; length 190 mm; diameter 3 mm
– **FK654R** — curved; sharp; rigid; length 190 mm; diameter 3 mm
– **FK696NR** — angled; rigid; SQ.line; length 300 mm; diameter 9 mm
– **FK698NR** — angled; rigid; SQ.line; length 300 mm; diameter 15 mm
– **FK702R** — straight; sharp; rigid; length 250 mm; diameter 3.6 mm
– **FK703R** — straight; sharp; rigid; size #00; length 250 mm; diameter 4.4 mm
– **FK704R** — straight; sharp; rigid; size #0; length 250 mm; diameter 5.2 mm
– **FK705R** — straight; sharp; rigid; size #1; length 250 mm; diameter 6.8 mm
– **FK712R** — angled; sharp; rigid; length 250 mm; diameter 3.6 mm
– **FK713R** — angled; sharp; rigid; size #00; length 250 mm; diameter 4.4 mm
– **FK714R** — angled; sharp; rigid; size #0; length 250 mm; diameter 5.2 mm
– **FK715R** — angled; sharp; rigid; size #1; length 250 mm; diameter 6.8 mm
– **FK743NR** — straight; sharp; rigid; SQ.line; size #0; length 300 mm; diameter 5.2 mm
– **FK745NR** — straight; sharp; rigid; SQ.line; size #2; length 300 mm; diameter 8.5 mm
– **FK747NR** — straight; sharp; rigid; SQ.line; size #4; length 300 mm; diameter 11.5 mm
– **FK753NR** — straight; sharp; rigid; SQ.line; size #0; length 400 mm; diameter 5.2 mm
– **FK755NR** — straight; sharp; rigid; SQ.line; size #2; length 400 mm; diameter 8.5 mm
– **FK757NR** — straight; sharp; rigid; SQ.line; size #4; length 400 mm; diameter 11.5 mm
– **FK845R** — straight; sharp; length 130 mm; diameter 6 mm; second working-end diameter 7 mm
– **FK846R** — straight; sharp; length 160 mm; diameter 7.3 mm; second working-end diameter 8.5 mm
– **FK848R** — straight; sharp; length 200 mm; diameter 9.5 mm; second working-end diameter 11.9 mm
– **FK850R** — straight; sharp; length 210 mm; diameter 6.2 mm; second working-end diameter 7.2 mm
– **OG189R** — angled; sharp; length 170 mm; diameter 1.6 mm; second working-end diameter 2 mm

Each configuration above is a separately catalogued item and can be quoted individually or as a set. Where two configurations carry identical printed specifications, the source catalog distinguishes them by catalog number only.

## Technical Specifications

– **Instrument type:** Bone Curette
– **Catalog category:** Spoons and Curettes (FK)
– **Catalog numbers:** DO650R, FK630NR, FK631NR, FK632NR, FK633NR, FK634NR, FK635NR, FK636NR, FK637NR, FK638NR, FK639NR, FK640NR, FK641NR, FK642NR, FK643NR, FK644NR, FK645NR, FK646NR, FK647NR, FK648NR, FK649NR, FK650R, FK651R, FK652R, FK653R, FK654R, FK696NR, FK698NR, FK702R, FK703R, FK704R, FK705R, FK712R, FK713R, FK714R, FK715R, FK743NR, FK745NR, FK747NR, FK753NR, FK755NR, FK757NR, FK845R, FK846R, FK848R, FK850R, OG189R
– **Configurations:** 47
– **Family ID:** FAM-000144
– **Source:** Aesculap Surgical Instrument Catalog, pp. 1458–1487

## Specification Coverage

It does not print overall length, working-end diameter, curvature, edge, size code, material, working angle, shaft characteristic, and tip form; these values are omitted here rather than estimated, and can be confirmed on inquiry. This listing reproduces only what the manufacturer’s catalog states. No material, certification, performance or clinical claim is added.

## Applications

The printed instrument designation identifies this item for bone procedures. This statement rests solely on the designation printed in the source catalog. The catalog does not publish indications, clinical protocols or procedure lists, and none are implied here. Confirm suitability for any specific procedure with your clinical team and against the manufacturer’s current instructions for use.

## Ordering Information

Bone Curette is supplied on a request-for-quote basis; the catalog publishes no price. Quote the catalog number for the configuration required. This family covers DO650R, FK630NR, FK631NR, FK632NR, FK633NR, FK634NR, FK635NR, FK636NR, FK637NR, FK638NR, FK639NR, and FK640NR among others. Refer to the individual configurations listed above for the exact printed specification of each. Send an inquiry to confirm current availability, packaging and lead time, or to request a formal quotation. Contact us for procurement documentation, including catalog references for tender submissions.

## Source and Traceability

All specifications above are reproduced from the Aesculap Surgical Instrument Catalog, pages 1458–1487, Spoons and Curettes section. Registry reference REG-000301; family FAM-000144. Values not printed in the source are omitted rather than estimated. For reference, the printed specification block for DO650R reads: · 6 1/4“, 160.00 mm · 2.30 mm · angled, gewinkelt · sharp/sharp, spitz/spitz · double ended, doppelendig · 2.80 mm
