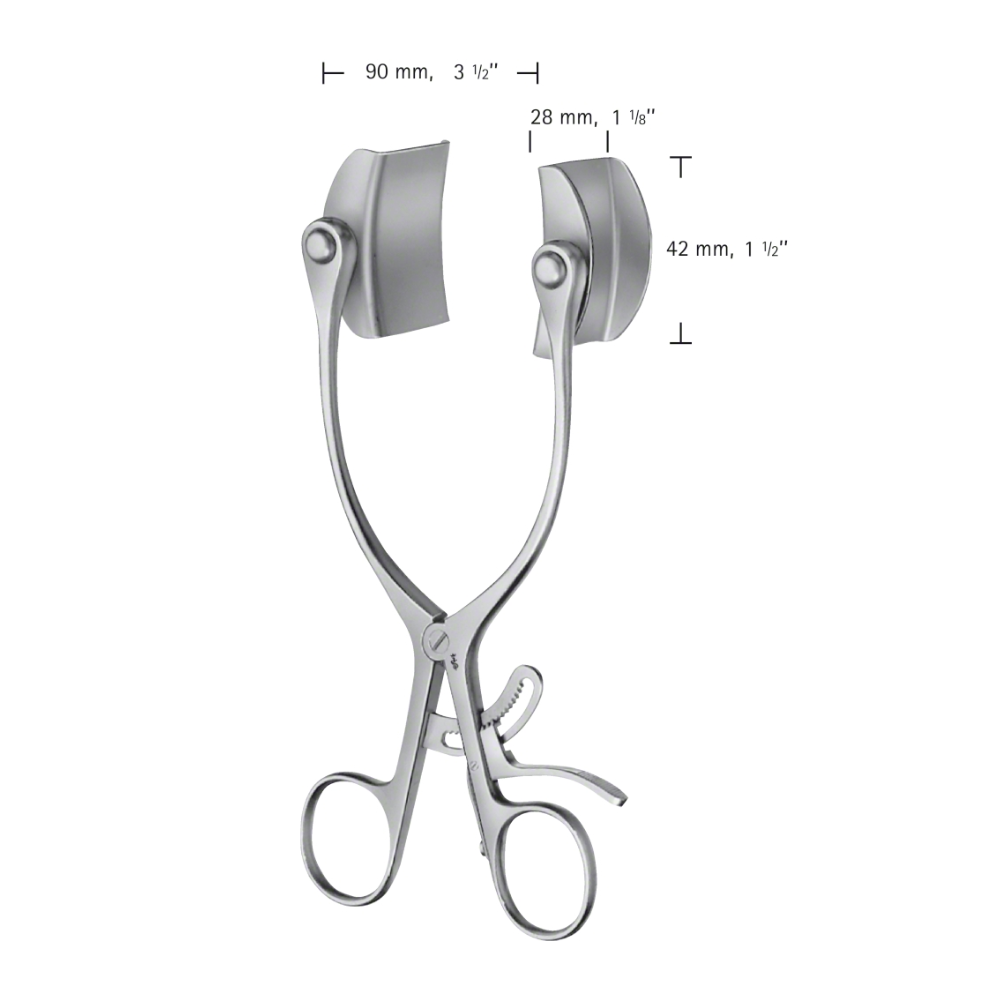

COLLIN (BABY) Abdominal Retractor
| Configuration |
complete retractor / 155 mm (6 1/8") / with ball snap closure ,pair of blades / 28 mm / 42 mm / with ball snap closure ,pair of blades / 18 mm / 42 mm / with ball snap closure ,frame only / 155 mm (6 1/8") / with ball snap closure |
|---|
- Self-Retaining Complete Abdominal Retractor Set
- 155 mm (6 1/8″) Complete Configuration
- 75 mm Opening Width
- 42 × 18 mm and 42 × 28 mm Interchangeable Blade Pairs
2-year warranty
Cubilia vestibulum interdum nisl lorem at interdum posuere libero iaculis.
Free Shipping
Cubilia vestibulum interdum nisl lorem at interdum posuere libero iaculis.
Overview
The COLLIN (BABY) Abdominal Retractor is a self-retaining complete retractor system designed for the supplied surgical disciplines of General / Visceral Surgery, Gynaecology, and Pediatric Surgery. The system combines a frame configuration with interchangeable blade pairs under one product family.
The complete retractor measures 155 mm (6 1/8″) in length and has a specified 75 mm opening width. Its connection is identified as a ball snap closure. A separate frame-only configuration maintains the same 155 mm length while providing a 90 mm opening width.
Complete Retractor Configuration
The complete COLLIN (BABY) configuration is supplied as a set. Its principal dimensions are 155 mm (6 1/8″) in length and 75 mm opening width.
The complete system incorporates the specified frame and blade components. The supplied information identifies the complete retractor as reusable and specifies it for General / Visceral Surgery, Gynaecology, and Pediatric Surgery.
Frame Configuration
The frame-only configuration measures 155 mm (6 1/8″) in length and provides a 90 mm opening width.
The frame uses a ball snap closure connection, matching the connection type specified for the complete retractor. The frame is also identified as reusable and carries the same three listed surgical disciplines.
Interchangeable Blade Configurations
The COLLIN (BABY) system includes two pair-of-blades configurations. Both options have a 42 mm jaw/blade width, while their depths differ:
- 42 × 18 mm blade pair
- 42 × 28 mm blade pair
Both configurations are supplied as a package of 2 pieces and are identified as reusable.
The two blade options should be treated as distinct configurations because their blade depths are different. The 18 mm and 28 mm depths should not be combined or presented as a single dimensional range.
Configuration and Size Table
| Configuration | Length | Opening Width | Blade Width | Blade Depth | Sales Unit | Connection |
|---|---|---|---|---|---|---|
| Complete retractor | 155 mm (6 1/8″) | 75 mm | — | — | Set | Ball snap closure |
| Frame only | 155 mm (6 1/8″) | 90 mm | — | — | Not specified | Ball snap closure |
| Pair of blades – Option 1 | — | — | 42 mm | 18 mm | Package of 2 pieces | Ball snap closure |
| Pair of blades – Option 2 | — | — | 42 mm | 28 mm | Package of 2 pieces | Ball snap closure |
Surgical Disciplines
The COLLIN (BABY) Abdominal Retractor system is specified for:
- General / Visceral Surgery
- Gynaecology
- Pediatric Surgery
These disciplines are associated with both the complete retractor and the supplied component configurations.
Reusable Design
The complete retractor, frame-only configuration, and both blade-pair configurations are identified as reusable. No sterilization method, sterilization cycle parameters, or sterile packaging information is provided in the supplied specifications.
Material
German stainless steel is used as the standard material designation for this product listing where no alternative material is supplied.
Product Specifications
| Specification | Details |
|---|---|
| Product Name | COLLIN (BABY) Abdominal Retractor |
| Product Type | Complete retractor / self-retaining |
| Configuration | Set |
| Complete Retractor Length | 155 mm (6 1/8″) |
| Complete Opening Width | 75 mm |
| Frame Length | 155 mm (6 1/8″) |
| Frame Opening Width | 90 mm |
| Blade Pair 1 | 42 × 18 mm |
| Blade Pair 2 | 42 × 28 mm |
| Blade Sales Unit | Package of 2 pieces |
| Connection | Ball snap closure |
| Discipline | General / Visceral Surgery, Gynaecology, Pediatric Surgery |
| Disposable / Reusable | Reusable |
| Material | German stainless steel |
| Sterility | Not specified in the supplied product information |
Product Identification
COLLIN (BABY) Abdominal Retractor — reusable self-retaining abdominal retraction system with a 155 mm (6 1/8″) complete configuration, 75 mm opening width, 155 mm frame with 90 mm opening, ball snap closure, and interchangeable 42 × 18 mm and 42 × 28 mm blade pairs supplied in packages of two pieces.
| Configuration |
complete retractor / 155 mm (6 1/8") / with ball snap closure ,pair of blades / 28 mm / 42 mm / with ball snap closure ,pair of blades / 18 mm / 42 mm / with ball snap closure ,frame only / 155 mm (6 1/8") / with ball snap closure |
|---|
