RICARD Abdominal Retractor – Self-Retaining Surgical System

SKU: RG-002438 Category: Self-Retaining Retractors

Configuration	complete retractor / 185 mm (7 1/4") / with ball snap closure / Set , center blade / 210 mm (8 1/4") / 54 mm / 70 mm , center blade / 215 mm (8 1/2") / 72 mm / 90 mm , pair of blades / 72 mm / 84 mm / with ball snap closure , pair of blades / 58 mm / 80 mm / with ball snap closure , frame only / 185 mm (7 1/4") / with ball snap closure

185 mm (7 1/4″) Complete Retractor with a 250 mm opening width
Interchangeable Center Blades measuring 210 mm and 215 mm in length
Paired Blades available in 84 × 72 mm and 80 × 58 mm sizes
Reusable System with ball snap closure on specified components

Configuration

Clear

Select Variation6 options

RG-002438Complete retractor / 185 mm (7 1/4") / with ball snap closure / set

RG-002438Center blade / 210 mm (8 1/4") / 54 mm / 70 mm

RG-002438Center blade / 215 mm (8 1/2") / 72 mm / 90 mm

RG-002438Pair of blades / 72 mm / 84 mm / with ball snap closure

RG-002438Pair of blades / 58 mm / 80 mm / with ball snap closure

RG-002438Frame only / 185 mm (7 1/4") / with ball snap closure

2-year warranty

Cubilia vestibulum interdum nisl lorem at interdum posuere libero iaculis.

Free Shipping

Cubilia vestibulum interdum nisl lorem at interdum posuere libero iaculis.

Description
Additional information

Overview

The RICARD Abdominal Retractor is a modular self-retaining retraction system comprising complete retractor configurations, a dedicated frame, interchangeable center blades, and pairs of blades. The supplied configurations provide multiple opening and blade dimensions while maintaining the RICARD system format. This makes the product data suitable for selecting the appropriate retraction configuration according to the required component dimensions and surgical discipline.

The complete retractor is specified at 185 mm (7 1/4″) in length with a 250 mm opening width. It is supplied in a set configuration and incorporates a ball snap closure. Two complete-retractor entries are supplied with the same principal dimensions and configuration, representing alternative component assemblies within the RICARD system. Both are identified as reusable and cover General / Visceral Surgery, Gynaecology, Urology, and Vascular Surgery.

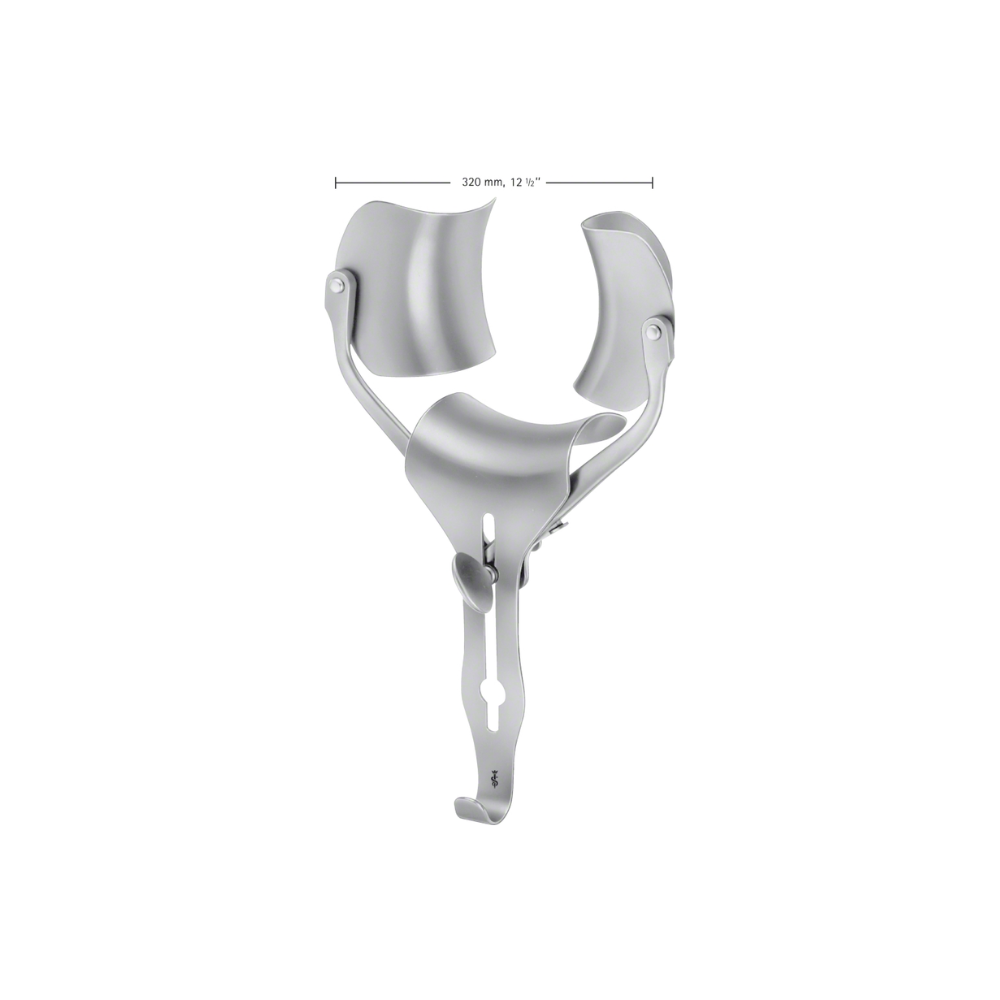

The system also includes an 185 mm (7 1/4″) frame with a 320 mm opening width and ball snap closure. The frame serves as a separate system component for the supplied RICARD configurations. The product information also specifies interchangeable center blades: one measures 210 mm (8 1/4″) in length with a 70 × 54 mm blade, while the other measures 215 mm (8 1/2″) with a 90 × 72 mm blade. Both center blades are identified for use with the RICARD frame component.

For paired blade configurations, the system provides an 84 × 72 mm pair and an 80 × 58 mm pair. Each pair is supplied as a package of 2 pieces and incorporates a ball snap closure. The 80 × 58 mm pair is specified for use with more than one system component, while the 84 × 72 mm pair is associated with the primary frame component. These dimensions should be selected according to the required RICARD system configuration rather than treated as separate standalone retractors.

The supplied product information identifies the RICARD Abdominal Retractor system as reusable and associates it with General / Visceral Surgery, Gynaecology, Urology, and Vascular Surgery. The system provides a defined range of complete-retractor, frame, center-blade, and paired-blade configurations for procurement and component selection.

Configuration and Size Table

Component / Configuration	Length	Opening Width	Jaw/Blade Width	Jaw/Blade Depth	Sales Unit	Connection
Complete retractor – Set	185 mm (7 1/4″)	250 mm	—	—	Set	Ball snap closure
Complete retractor – Set	185 mm (7 1/4″)	250 mm	—	—	Set	Ball snap closure
Frame only	185 mm (7 1/4″)	320 mm	—	—	—	Ball snap closure
Center blade	210 mm (8 1/4″)	—	70 mm	54 mm	—	—
Center blade	215 mm (8 1/2″)	—	90 mm	72 mm	—	—
Pair of blades	—	—	84 mm	72 mm	Package of 2 pieces	Ball snap closure
Pair of blades	—	—	80 mm	58 mm	Package of 2 pieces	Ball snap closure

Product Specifications

Specification	Details
Product Name	RICARD Abdominal Retractor
Product Type	Self-retaining abdominal retractor system
System Configuration	Complete retractor, frame, center blades, and pairs of blades
Complete Retractor Length	185 mm (7 1/4″)
Complete Retractor Opening Width	250 mm
Frame Length	185 mm (7 1/4″)
Frame Opening Width	320 mm
Center Blade Options	210 mm / 70 × 54 mm; 215 mm / 90 × 72 mm
Pair Blade Options	84 × 72 mm; 80 × 58 mm
Connection	Ball snap closure where specified
Configuration	Set for complete retractor
Sales Unit	Pair configurations supplied as package of 2 pieces
Material	German stainless steel
Disposable / Reusable	Reusable
Sterility	Not specified in the supplied product information
Disciplines	General / Visceral Surgery, Gynaecology, Urology, Vascular Surgery

Product Identification

RICARD Abdominal Retractor — reusable self-retaining abdominal retraction system with 185 mm complete-retractor/frame length, 250 mm complete-retractor opening, 320 mm frame opening, interchangeable center blades of 70 × 54 mm and 90 × 72 mm, and paired blades of 84 × 72 mm and 80 × 58 mm. Ball snap closure is specified for the complete retractor, frame, and paired-blade configurations.
