HOLZBACH Abdominal Retractor – Self-Retaining System
| Configuration |
complete retractor / 305 mm (12") / with ball snap closure / Set ,frame only / 305 mm (12") / with ball snap closure ,pair of blades, fenestrated / 59 mm / 80 mm / with ball snap closure ,center blade / 220 mm (8 3/4") / fenestrated / 74 mm / 82 mm |
|---|
- 305 mm (12″) Complete Retractor with a 215 mm opening width
- 305 mm (12″) Frame with a 275 mm opening width
- Fenestrated Blade Options including an 80 × 59 mm pair and an 82 × 74 mm center blade
- Reusable System with ball snap closure on the complete retractor, frame, and blade pair
2-year warranty
Cubilia vestibulum interdum nisl lorem at interdum posuere libero iaculis.
Free Shipping
Cubilia vestibulum interdum nisl lorem at interdum posuere libero iaculis.
Overview
The HOLZBACH Abdominal Retractor is a modular self-retaining abdominal retraction system comprising a complete retractor set, a dedicated frame, a fenestrated pair of blades, and a fenestrated center blade. The supplied components provide distinct frame opening and blade dimensions, allowing the system configuration to be identified according to the specific component selected.
The complete retractor measures 305 mm (12″) in length and has a 215 mm opening width. It is supplied as a set and incorporates a ball snap closure. The complete configuration is identified as reusable and is associated with Gynaecology, Urology, General / Visceral Surgery, and Vascular Surgery.

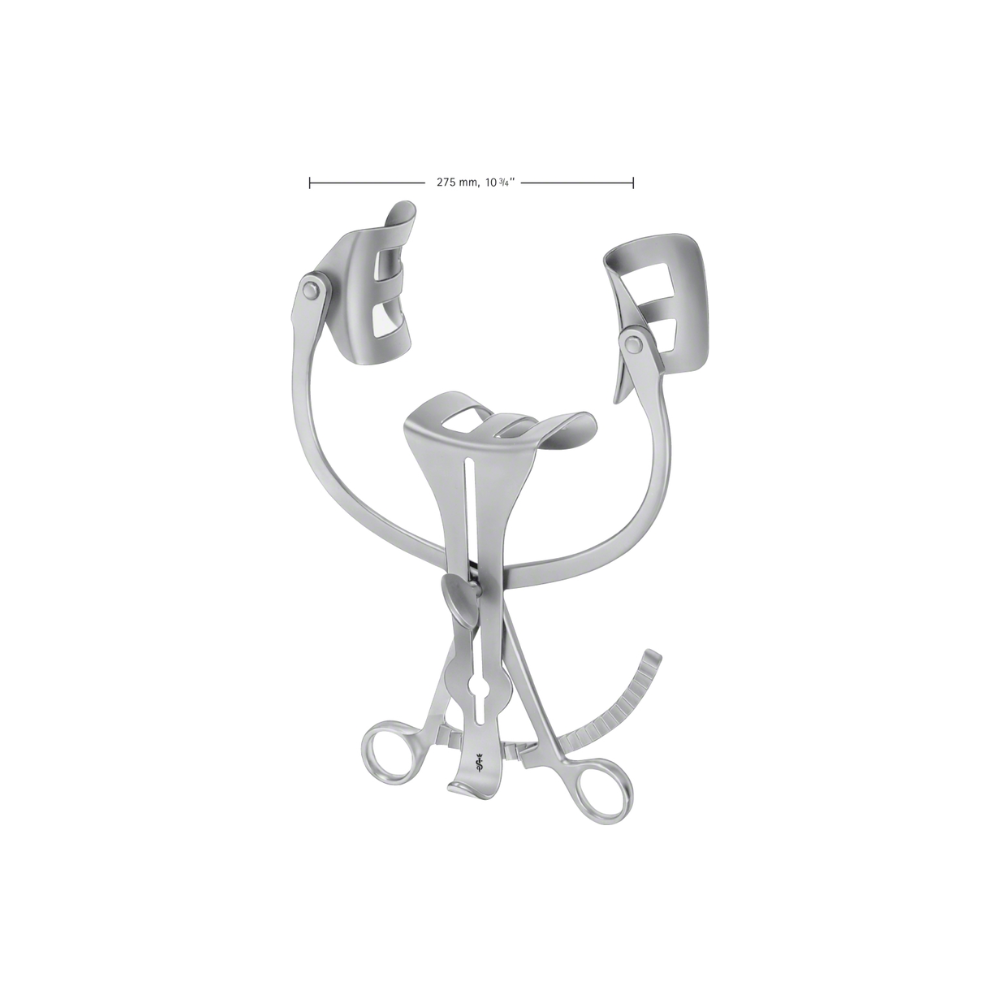

The separate frame-only configuration also measures 305 mm (12″) in length, but provides a larger 275 mm opening width. It features a ball snap closure and is identified for the same four surgical disciplines. This distinction between the 215 mm opening of the complete retractor and the 275 mm opening of the frame should be preserved when selecting or cataloguing the system.
The HOLZBACH system includes a fenestrated pair of blades measuring 80 × 59 mm. These blades are supplied as a package of 2 pieces and feature ball snap closure. A separate fenestrated center blade measures 220 mm (8 3/4″) in length, with an 82 mm blade width and 74 mm blade depth. The supplied information associates the center blade specifically with Gynaecology and General / Visceral Surgery.
All supplied HOLZBACH components are identified as reusable. The system is specified for Gynaecology, Urology, General / Visceral Surgery, and Vascular Surgery, while the center blade has the narrower discipline specification of Gynaecology and General / Visceral Surgery.
Configuration and Size Table
| Component / Configuration | Length | Opening Width | Blade / Jaw | Blade Type | Sales Unit | Connection |
|---|---|---|---|---|---|---|
| Complete retractor – Set | 305 mm (12″) | 215 mm | — | — | Set | Ball snap closure |
| Frame only | 305 mm (12″) | 275 mm | — | — | — | Ball snap closure |
| Pair of blades | — | — | 80 × 59 mm | Fenestrated | Package of 2 pieces | Ball snap closure |
| Center blade | 220 mm (8 3/4″) | — | 82 × 74 mm | Fenestrated | — | — |
Product Specifications
| Specification | Details |
|---|---|
| Product Name | HOLZBACH Abdominal Retractor |
| Product Type | Self-retaining abdominal retraction system |
| System Configuration | Complete retractor, frame, pair of blades, center blade |
| Complete Retractor Length | 305 mm (12″) |
| Complete Retractor Opening Width | 215 mm |
| Frame Length | 305 mm (12″) |
| Frame Opening Width | 275 mm |
| Pair of Blades | 80 × 59 mm, fenestrated |
| Center Blade | 220 mm (8 3/4″), 82 × 74 mm, fenestrated |
| Connection | Ball snap closure where specified |
| Configuration | Set for complete retractor |
| Sales Unit | Pair of blades supplied as package of 2 pieces |
| Material | German stainless steel |
| Disposable / Reusable | Reusable |
| Sterility | Not specified in the supplied product information |
| Disciplines | Gynaecology, Urology, General / Visceral Surgery, Vascular Surgery |
Product Identification
HOLZBACH Abdominal Retractor — reusable self-retaining abdominal retraction system featuring a 305 mm (12″) complete retractor, 215 mm opening, 305 mm frame with 275 mm opening, an 80 × 59 mm fenestrated blade pair, and a 220 mm fenestrated center blade measuring 82 × 74 mm. Ball snap closure is specified for the complete retractor, frame, and blade pair.
| Configuration |
complete retractor / 305 mm (12") / with ball snap closure / Set ,frame only / 305 mm (12") / with ball snap closure ,pair of blades, fenestrated / 59 mm / 80 mm / with ball snap closure ,center blade / 220 mm (8 3/4") / fenestrated / 74 mm / 82 mm |
|---|
